Mako Power 100
Quick Start Guide

Box Contents

• 1x Mako Power 100 GSM Power Socket
• 1x SIM Card
• 1x Temperature Sensor

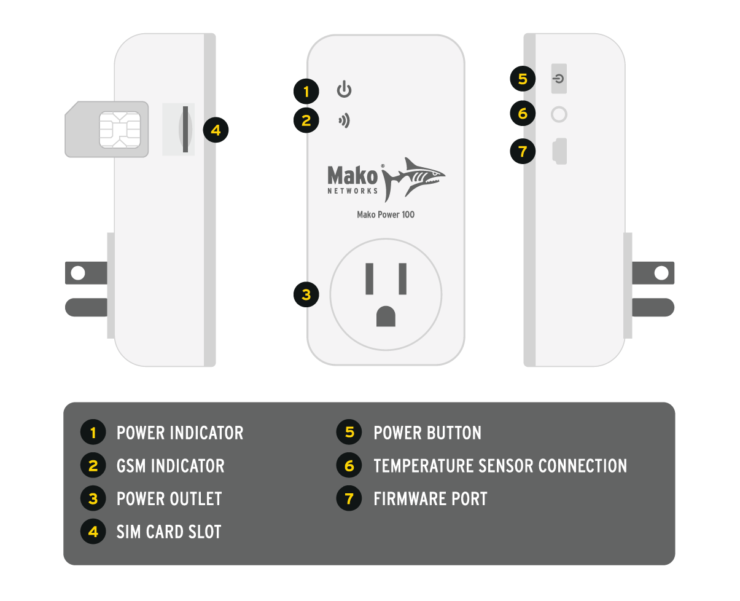

Mako Power 100 Diagram

Thank you for purchasing the Mako Power 100 GSM Power Socket. This product is designed to allow you to use the Mako Central Management System (CMS) to remotely control AC power to a dependent device connected to the product. It is a completely wireless M2M (machine to machine) device, only requiring power and cellular service.  Additionally, when power is restored after an outage, this product will resume supplying power to the dependent device and will send an alert to the Mako CMS.

Connecting Your Mako Device

1.  Verify SIM Card Is Inserted

Your Mako Power 100 should have arrived with an appropriate SIM card already inserted in the SIM Card Slot on the left side of the device.  Verify that the SIM card is inserted correctly.

If you need to insert the SIM card, hold the device so its Power Socket is facing you, then insert the SIM card into the SIM Card Slot with the cut edge going into the device first and the gold contacts facing you.  Gently push the SIM card all the way in until it clicks.

If you need to release the SIM card, push gently on it until it pops out.

2.  Connect Temperature Sensor

Connect the temperature sensor to the Temperature Sensor Connection port on the right side of the Mako Power 100.  The temperature sensor must be pushed all the way in, otherwise it may give inaccurate readings.

3.  Connect to Power

Connect the Mako Power 100 plug directly into a mains power outlet, then press the Power Button on the right side of the device.

If the SIM card is inserted correctly and connected to an available mobile network, the GSM Indicator LED will fade on and off and the device is ready to be used.

Refer to the LED Light Indicator Key table below for more details regarding the device’s lights.

4.  Connect the Dependent Device

Connect the plug of the dependent device directly into the Power Outlet on the Mako Power 100.

The power state of the Mako Power 100 (either “On” or “Off”) controls whether or not the dependent device is supplied with power.  The power state can be toggled remotely via SMS messages or locally via the Power Button.

5.  Log In to the Mako CMS (Optional)

Your Mako Networks reseller should have preconfigured a profile for your Mako device in the Mako CMS and should also have provided you with login credentials to access the Mako CMS to control and manage your Mako device.

The Mako CMS can be accessed by clicking the “Login” link at:

https://makonetworks.com/

In the Mako CMS, you can view the latest status (power state and temperature) provided by the Mako Power 100 as well as its event log.

You can also send SMS requests to this device:

• Get Status – device responds with current status
• Send Power Off – device switches power state to “Off” and responds with current status
• Send Power On – device switches power state to “On” and responds with current status

NOTE:  if you change the SIM card, you will need to update the phone number setting for this device in the Mako CMS in order to continue sending and receiving SMS messages.

6.  Firmware Updates

In certain cases, you may receive additional instructions from Mako Networks for updating the Mako Power 100 device firmware using the Firmware Port.  Do not use the Firmware Port for any other purpose.

LED Light Indicator Key

Disclaimer Notices, Safety Recommendations, and Important Information

• This product is designed for IT business electrical appliances up to 15 A, 100-120 V. Examples of equipment that can be controlled are routers, switches, ATMs, etc. Any connected equipment must be directly mains powered. Do not exceed the maximum rated current and voltage. Mako Networks is not liable for any damage or losses resulting from improper use or exceeding specified ratings.
• This product requires an activated, standard-sized (2FF) SIM card with PIN codes disabled and available cellular service. We recommend using an M2M (machine to machine) contract SIM card. If using any other type of SIM card, you must ensure it has credit at all times. Failure to maintain an active cellular service may result in loss of device control. Mako Networks is not responsible for any consequences arising from loss of cellular service or device control.
• Always check that the SMS cellular signal strength is strong enough for this product to be used in your required location before deploying the product. This product is totally network dependent and we cannot be held responsible for delays in SMS responses or SMS messages not being received as this is fully controlled by the cellular network. Users assume all risks associated with network dependencies and signal strength issues.
• Be sure to keep Mako CMS credentials and Mako Power 100 cellular numbers safe. Do not disclose this information to anyone in order to prevent misuse. Regularly update passwords and access credentials to maintain security. Failure to properly secure credentials may result in unauthorized access, for which Mako Networks bears no responsibility.
• This product is not designed for use in, and should not be used for, domestic or medical applications. This product does not guarantee a safe power source disconnection; only functional switching of power is performed.
• This product is designed for indoor use only. Do not use in a wet, chemically aggressive, or dusty environment. Use in unsuitable environments voids all warranties and may create hazardous conditions.
• Do not use alcohol, acetone, or any other solvents to clean this product. Disconnect the product from power, then wipe the outside of the product with a soft, damp cloth. Avoid getting moisture in openings or electrical connections. Improper cleaning methods may damage the device and create safety hazards, voiding all warranties.
• This product contains no serviceable parts and no internal adjustments are required. Do not attempt to repair or open this product. Faulty units should be returned to the reseller after support has been completed. Improper use, disassembly, or product modification immediately invalidates the product warranty and may pose safety risks.
• This product uses wireless signal transmissions. Keep it away from electronic equipment that could cause interference. Mako Networks is not responsible for any interference issues or resulting damages.
• Keep this product and its accessories out of reach of children. The device and its components may pose choking hazards.
• Dispose of the device and its components in accordance with local regulations for electronic waste. Do not dispose of in regular household waste.
• In case of any malfunction, unusual odor, or visible damage, immediately unplug the device and contact support.
• Mako Networks reserves the right to update device firmware. Ensure you are using the latest version for optimal performance and security.
